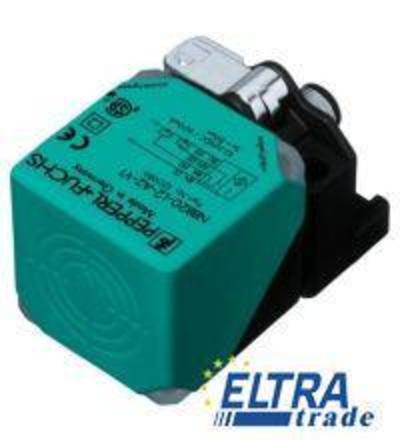

The Inductive sensor from Pepperl+Fuchs is designed for precise non-contact detection of metallic objects. Its robust housing and rated operating distance of 40 mm make it suitable for a variety of industrial applications.
Inductive proximity sensors are essential components in automation and control systems, widely used for detecting the presence or absence of metallic objects without physical contact. These sensors operate on the principle of electromagnetic induction, which allows them to sense metallic targets within a defined sensing range.
Common applications include positioning systems, assembly line automation, and safety interlocks in machinery. The sensors are particularly valued for their durability and reliability in harsh environments, thanks to their robust housing materials and compact design. With features such as a non-flush installation and a connector M12 x 1 for easy integration, these sensors provide versatile solutions for various industrial needs.
- Rated operating distance: 40 mm
- Installation type: Non-flush
- Type of voltage: DC
- ATEX certification for safe operation in explosive atmospheres
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 40 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 32.4 mm | |
| Reduction factor rAl | 0.31 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.74 | |
| Nominal ratings | ||
| Nominal voltage | 8.2 V (Ri approx. 1 kOm) | |
| Switching frequency | 0 … 150 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | yes | |
| Current consumption | ||
| Measuring plate not detected | greater or equal 2.2 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1670 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 �C (-13 … 212 �F) | |
| Storage temperature | -40 … 100 �C (-40 … 212 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PA | |
| Sensing face | PA | |
| Housing diameter | ||
| Degree of protection | IP69K | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G- 3G- 3D | |
