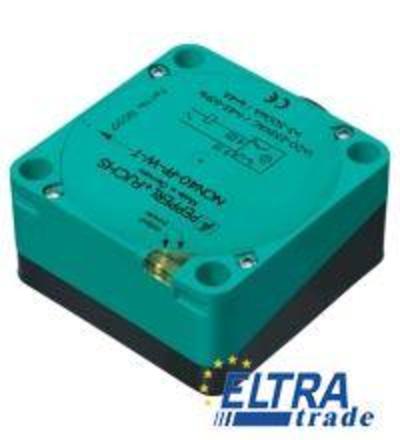

The inductive sensor from Pepperl+Fuchs is designed for reliable proximity detection in industrial environments. It operates without physical contact, providing durability and longevity in various applications.
Inductive proximity sensors are essential components in automated systems, designed to detect metallic objects without direct contact. These sensors utilize electromagnetic fields to sense the presence of conductive materials, making them ideal for various industrial applications.
Commonly used in machinery and automation processes, inductive sensors can be found in assembly lines, packaging, and material handling systems. They offer advantages such as immunity to dust and moisture, ensuring reliable operation even in harsh environments. With a range of sensing distances and configurations, these sensors are versatile tools for enhancing operational efficiency.
| General specifications | ||
| Switching element function | DC |
|
| Rated operating distance | 50 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 40.5 mm | |
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.35 | |
| Reduction factor r304 | 0.8 | |
| Nominal ratings | ||
| Operating voltage | 10 … 60 V | |
| Switching frequency | 0 … 80 Hz | |
| Hysteresis | 0 … 20 typ. 5 % | |
| Reverse polarity protection | reverse polarity tolerant | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 6 V | |
| Operating current | 2 … 200 mA | |
| Off-state current | 0.4 … 1 mA typ. 0.6 mA | |
| Switching state indicator | LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Storage temperature | -25 … 85 °C (-13 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | up to 2.5 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
