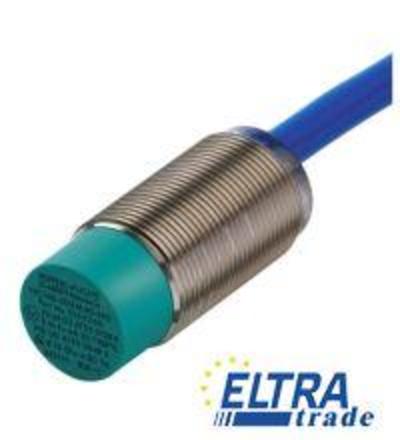

The inductive sensor from Pepperl+Fuchs is designed for non-contact detection of metallic objects. Its robust construction allows for use in harsh industrial environments, providing reliable performance in various applications.
Inductive proximity sensors are essential components in automation and control systems, providing precise detection of metallic objects without direct contact. These sensors operate on the principle of electromagnetic induction, generating a field around the sensing face, which detects changes when a metal target approaches. This non-contact operation minimizes wear and tear, enhancing the longevity of the sensor and the machinery it supports.
Common applications for inductive sensors include position sensing, object counting, and detection of metal parts in manufacturing processes. They are widely utilized in automotive, packaging, and material handling industries due to their reliability and versatility. Additionally, these sensors are designed to withstand challenging conditions such as dust, moisture, and varying temperatures, making them suitable for industrial environments.
|
General specifications |
||
|
Switching element function |
NAMUR, NC |
|
|
Rated operating distance |
8 mm |
|
|
Installation |
non-flush |
|
|
Output polarity |
NAMUR |
|
|
Assured operating distance |
0 … 6.48 mm |
|
|
Reduction factor rAl |
0.42 |
|
|
Reduction factor rCu |
0.4 |
|
|
Reduction factor r304 |
0.72 |
|
|
Nominal ratings |
||
|
Nominal voltage |
8.2 V (Ri approx. 1 kOm) |
|
|
Switching frequency |
0 … 300 Hz |
|
|
Hysteresis |
1 … 15 typ. 5 % |
|
|
Reverse polarity protection |
reverse polarity protected |
|
|
Short-circuit protection |
yes |
|
|
Current consumption |
||
|
Measuring plate not detected |
min. 3 mA |
|
|
Measuring plate detected |
less than or equal to 1 mA |
|
|
Switching state indicator |
all direction LED, yellow |
|
|
Functional safety related parameters |
||
|
MTTFd |
2040 a |
|
|
Mission Time (TM) |
20 a |
|
|
Diagnostic Coverage (DC) |
0 % |
|
|
Compliance with standards and directives |
||
|
Standard conformity |
||
|
NAMUR |
EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
|
Electromagnetic compatibility |
NE 21:2007 |
|
|
Approvals and certificates |
||
|
FM approval |
||
|
Control drawing |
116-0165F |
|
|
UL approval |
cULus Listed, General Purpose |
|
|
CSA approval |
cCSAus Listed, General Purpose |
|
|
CCC approval |
CCC approval / marking not required for products rated less than or equal to 36 V |
|
|
Ambient conditions |
||
|
Ambient temperature |
-25 … 100 °C (-13 … 212 °F) |
|
|
Storage temperature |
-40 … 100 °C (-40 … 212 °F) |
|
|
Mechanical specifications |
||
|
Connection type |
cable PVC , 2 m |
|
|
Core cross-section |
0.75 mm2 |
|
|
Housing material |
Stainless steel 1.4305 / AISI 303 |
|
|
Sensing face |
PBT |
|
|
Housing diameter |
18 mm |
|
|
Degree of protection |
IP67 |
|
|
General information |
||
|
Use in the hazardous area |
see instruction manuals |
|
|
Category |
1G- 2G- 3G- 1D- 3D |
|
