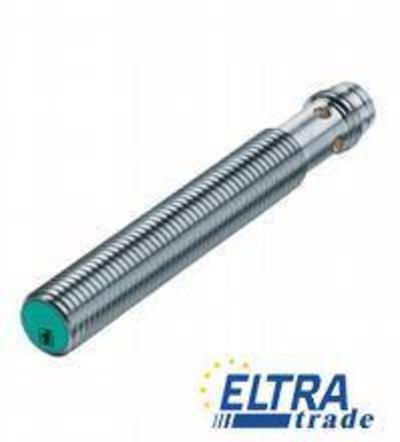

The inductive sensor from Pepperl+Fuchs is designed for reliable detection of metallic objects. With a housing diameter of 8 mm and a rated operating distance of 4 mm, this sensor is ideal for a variety of industrial applications.
Inductive proximity sensors are essential components in automation and control systems, primarily used for non-contact detection of metallic objects. These sensors operate on the principle of electromagnetic induction, generating an oscillating electromagnetic field that detects changes when a metal object enters its range. The cylindrical design and compact size make them suitable for installation in tight spaces, allowing for flexible integration into machinery and equipment.
Common applications of inductive sensors include presence detection in conveyor systems, safety applications in machinery, and position sensing in automated processes. Their durability, along with a robust housing made of chromium plated brass, ensures reliable performance even in harsh industrial environments. The sensors typically feature a quasi-flush mounting style and are equipped with a 3-wire output and an M8 x 1 connector for easy installation and connectivity.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 4 mm | |
| Installation | quasi flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 3.24 mm | |
| Reduction factor rAl | 0.25 | |
| Reduction factor rCu | 0.22 | |
| Reduction factor r304 | 0.65 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 500 Hz | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.1 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 10 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 311 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M8 x 1 , 3-pin | |
| Housing material | chromium plated brass | |
| Sensing face | PBT | |
| Housing diameter | 8 mm | |
| Degree of protection | IP67 | |
