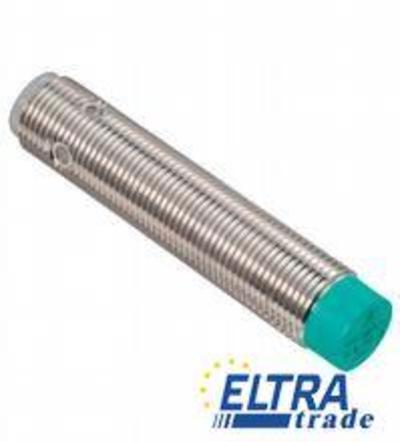

The inductive sensor is a cylindrical proximity sensing device designed for non-flush installation. Constructed with a brass, nickel-plated housing, it features a rated operating distance of 10 mm with a 4-pin M12 x 1 connector for easy integration.
Inductive proximity sensors are essential components in industrial automation, widely used for detecting the presence of metallic objects without physical contact. These sensors operate based on the principle of electromagnetic induction, allowing them to provide reliable and precise sensing capabilities in various applications.
Commonly utilized in manufacturing processes, assembly lines, and conveyor systems, inductive sensors can enhance operational efficiency by facilitating automatic control and monitoring. Their robust design, including a cylindrical housing made of brass and nickel-plated material, ensures durability in challenging environments. Additionally, the sensors’ DC voltage operation and 3-wire output configuration make them versatile and compatible with a range of control systems.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 10 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 8.1 mm | |
| Actuating element | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 30 mm x 30 mm x 1 mm |
|
| Reduction factor rAl | 0.45 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.75 | |
| Reduction factor rBrass | 0.45 | |
| Nominal ratings | ||
| Installation conditions | ||
| A | in steel 1.0037 (St37): 10 mm | |
| B | 16 mm | |
| C | 30 mm | |
| F | 42 mm | |
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 600 Hz | |
| Hysteresis | 0.06 … 1 mm | |
| Reverse polarity protection | yes | |
| Short-circuit protection | pulsing | |
| Overload resistance | yes | |
| Wire breakage protection | yes | |
| Surge suppression | yes | |
| Ripple | 10 % | |
| Voltage drop | less than or equal to 2 V | |
| Repeat accuracy | 0.3 mm | |
| Operating current | 0 … 200 mA , above 70°C max. 150 mA | |
| Off-state current | less than or equal to 10 mA | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1740 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 85 °C (-13 … 185 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
| Mass | 20 g | |
| Tightening torque, fastening screws | max. 10 Nm | |
