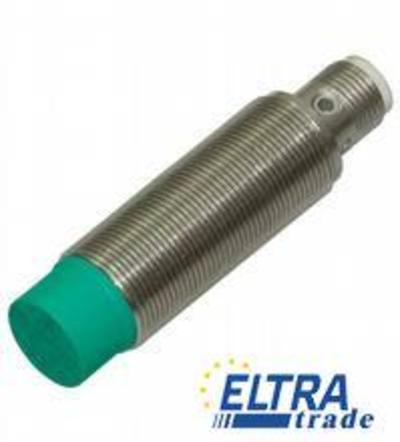

The inductive sensor series features cylindrical designs with a robust brass, nickel-plated housing suitable for various industrial applications. With a rated operating distance of 20 mm and a 4-pin M12 x 1 device connector, these sensors are designed for reliable performance in non-flush installations.
Inductive proximity sensors are widely utilized in automation and control applications to detect metallic objects without direct contact. These sensors operate on the principle of electromagnetic induction, generating a field that can sense the presence of metal within a certain range, which in this case is up to 20 mm. The robust cylindrical design, with a diameter of 18 mm, offers versatility in installation and is particularly suited for environments where space is limited.
Common applications of inductive sensors include automation machinery, conveyor systems, and robotic handling. They are often employed in manufacturing processes for position detection, counting, and as safety interlocks. With a 3-wire output configuration and DC voltage compatibility, these sensors provide straightforward integration into various control systems, ensuring precise and reliable operation in diverse industrial settings.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 20 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 16.2 mm | |
| Actuating element | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 60 mm x 60 mm x 1 mm |
|
| Reduction factor rAl | 0.35 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.7 | |
| Reduction factor rBrass | 0.45 | |
| Nominal ratings | ||
| Installation conditions | ||
| A | in steel 1.0037 (St37): 20 mm | |
| B | 30 mm | |
| C | 60 mm | |
| F | 78 mm | |
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 200 Hz | |
| Hysteresis | 0.1 … 2 mm | |
| Reverse polarity protection | yes | |
| Short-circuit protection | pulsing | |
| Overload resistance | yes | |
| Wire breakage protection | yes | |
| Inductive overvoltage protection | yes | |
| Surge suppression | yes | |
| Ripple | 10 % | |
| Voltage drop | less than or equal to 2 V | |
| Repeat accuracy | 1 mm | |
| Operating current | 0 … 200 mA | |
| Off-state current | less than or equal to 10 mA | |
| No-load supply current | less than or equal to 11 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1940 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 85 °C (-13 … 185 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
| Mass | 30 g | |
| Tightening torque, fastening screws | max. 20 Nm | |
