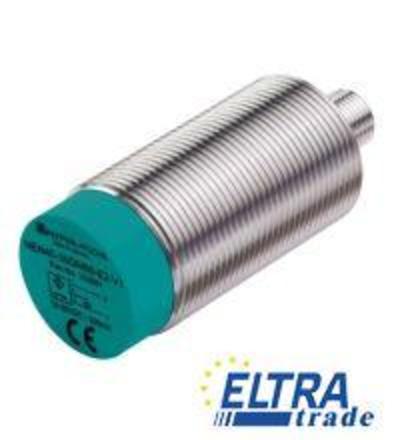

The inductive proximity sensor is a reliable solution for non-contact detection of metallic objects. With a cylindrical housing design and a robust construction, these sensors are ideal for various industrial applications.
Inductive proximity sensors are widely utilized in automation and control systems for their ability to detect the presence of metallic objects without direct contact. They operate based on the principle of electromagnetic induction, which enables them to sense changes in the oscillating electromagnetic field surrounding the sensor when a metal object enters its detection range.
These sensors are particularly suitable for applications in manufacturing processes, conveyor systems, and packaging machinery, where precise and reliable object detection is crucial. The cylindrical type design, with a housing diameter of 30 mm and made from durable chromium-plated brass, provides robustness necessary for harsh industrial environments. The rated operating distance of 40 mm ensures effective detection capability, while the non-flush installation facilitates easy integration into various setups.
Furthermore, the sensors feature a 4-pin M12 x 1 connector for straightforward electrical connections, supporting a 3-wire output configuration, and operate on DC voltage. This combination of features makes inductive proximity sensors an essential component for enhancing operational efficiency and safety in automated systems.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 40 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 32.4 mm | |
| Reduction factor rAl | 0.36 | |
| Reduction factor rCu | 0.32 | |
| Reduction factor r304 | 0.69 | |
| Nominal ratings | ||
| Installation conditions | ||
| A | in aluminum: 25 mm in steel 1.0037 (St37): 35 mm in brass 25 mm in stainless steel 20 mm |
|
| B | 40 mm | |
| C | 120 mm | |
| F | 150 mm | |
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 100 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.1 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 10 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 211 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | chromium plated brass | |
| Sensing face | PBT | |
| Housing diameter | 30 mm | |
| Degree of protection | IP67 | |
