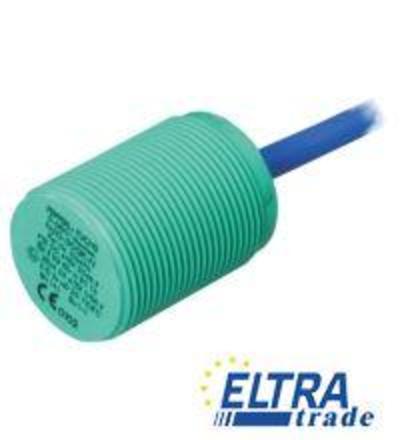

The inductive sensor from Pepperl+Fuchs is a cylindrical type sensor designed for reliable detection of metallic objects. With a rated operating distance of 10 mm, it features a durable PBT housing and a flush installation capability, making it suitable for various industrial applications.
Inductive proximity sensors are essential components in automation and control systems, providing non-contact sensing of metallic objects. Their operation is based on the principle of electromagnetic induction, which enables them to detect the presence of metal without physical contact. This feature reduces wear and tear on both the sensor and the target, enhancing longevity and reliability in demanding environments.
Common applications for these sensors include position detection, object counting, and presence verification in manufacturing and assembly lines. They can be utilized in various sectors, including automotive, packaging, and material handling, where precise and reliable detection is critical. The sensors are typically configured for DC voltage operation and are available in multiple housing styles, allowing for flexibility in installation within tight spaces.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 10 mm | |
| Installation | flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 8.1 mm | |
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.85 | |
| Nominal ratings | ||
| Nominal voltage | 8.2 V (Ri approx. 1 kOm) | |
| Switching frequency | 0 … 300 Hz | |
| Hysteresis | 1 … 10 typ. 5 % | |
| Current consumption | ||
| Measuring plate not detected | min. 3 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Functional safety related parameters | ||
| MTTFd | 5070 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 °C (-13 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.75 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Housing diameter | 30 mm | |
| Degree of protection | IP66 | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 2G- 1D | |
