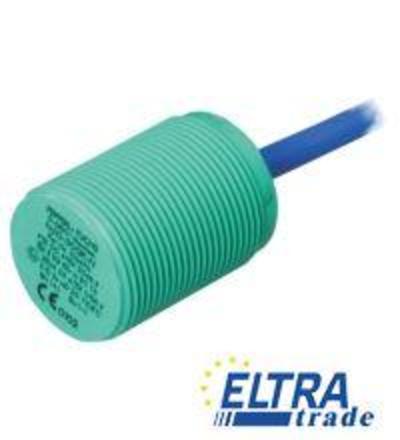

The inductive sensor is a cylindrical type proximity sensor with a housing diameter of 30 mm, designed for non-flush installation. It features a rated operating distance of 15 mm and operates on DC voltage, making it suitable for various automation applications.
Inductive proximity sensors are essential components in industrial automation, offering reliable detection of metallic objects without physical contact. These sensors utilize electromagnetic fields to sense the presence of ferrous and non-ferrous metals, making them ideal for a wide range of applications, including material handling, assembly automation, and safety systems.
Constructed with durable PBT housing, these sensors are built to withstand harsh industrial environments. The non-flush installation allows for greater flexibility in mounting, ensuring optimal performance across various setups. With a rated operating distance of 15 mm, the sensors provide precise detection capabilities, while the 2-wire output facilitates easy integration into existing systems. Their robust design and reliable functionality make them a preferred choice for engineers looking to enhance operational efficiency.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 15 mm | |
| Installation | non-flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 12.15 mm | |
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.85 | |
| Nominal ratings | ||
| Nominal voltage | 8 V | |
| Switching frequency | 0 … 100 Hz | |
| Current consumption | ||
| Measuring plate not detected | min. 3 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Functional safety related parameters | ||
| MTTFd | 4560 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 °C (-13 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 10 m | |
| Core cross-section | 0.75 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Housing diameter | 30 mm | |
| Degree of protection | IP68 | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 2G- 1D | |
