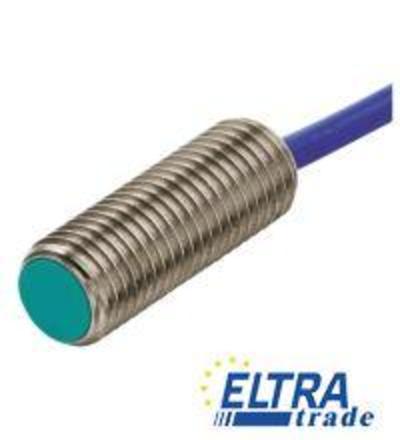

This inductive sensor features a cylindrical design with an 8 mm housing diameter. Constructed from durable stainless steel 1.4305/AISI 303, it offers a rated operating distance of 1.5 mm and is equipped with a 2-wire DC output.
Inductive proximity sensors are critical components widely utilized in automation and control systems, providing reliable detection of metallic objects without physical contact. These sensors operate on the principle of electromagnetic induction, allowing them to sense the presence of metallic targets within their specified operating range.
The cylindrical design of these sensors, particularly with a housing diameter of 8 mm, makes them suitable for a variety of applications, including machine automation, position detection, and safety systems. Their robust stainless steel construction ensures durability in harsh environments, while the flush installation capability allows for seamless integration into existing machinery.
Common applications for inductive sensors include automotive manufacturing, packaging machinery, and conveyor systems, where precise detection and feedback are essential for maintaining operational efficiency. With a rated operating distance of 1.5 mm, these sensors are ideal for scenarios requiring compact and reliable sensing solutions.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 1.5 mm | |
| Installation | flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 1.215 mm | |
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.85 | |
| Nominal ratings | ||
| Nominal voltage | 8.2 V (Ri approx. 1 kOm) | |
| Switching frequency | 0 … 5000 Hz | |
| Hysteresis | 1 … 10 typ. 5 % | |
| Suitable for 2:1 technology | yes , Reverse polarity protection diode not required | |
| Current consumption | ||
| Measuring plate not detected | min. 3 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 °C (-13 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.14 mm2 | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 8 mm | |
| Degree of protection | IP66 / IP67 | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G | |
