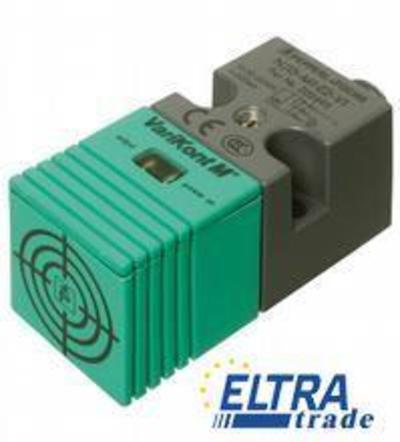

The Inductive sensor from Pepperl+Fuchs is designed for reliable non-contact detection of metallic objects. With a rated operating distance of 15 mm, this sensor is suitable for various industrial applications where precision and durability are paramount.
The VariKont series inductive proximity sensors are engineered for robust performance in industrial automation environments. These sensors utilize electromagnetic fields to detect the presence of metallic objects without physical contact, making them ideal for applications that require high reliability and minimal wear. The sensors are constructed from durable PBT and metal materials, ensuring longevity even in harsh conditions.
Common applications for inductive proximity sensors include, but are not limited to, position detection, object counting, and safety monitoring in manufacturing processes. Due to their non-flush installation and DC voltage operation, these sensors are versatile and can be easily integrated into existing systems. Their 4-pin M12 x 1 connector facilitates straightforward connectivity to various control systems.
| NJ15-M1-E2-V1 222495 |
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 15 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 12.15 mm | |
| Reduction factor rAl | 0.39 | |
| Reduction factor rCu | 0.36 | |
| Reduction factor r304 | 0.73 | |
| Nominal ratings | ||
| Operating voltage | 10 … 60 V DC | |
| Switching frequency | 0 … 200 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | yes | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2.5 V | |
| Rated insulation voltage | 500 V | |
| Operating current | 0 … 200 mA | |
| No-load supply current | less than or equal to 14 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 932 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PBT/metal RAL 7011 | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
