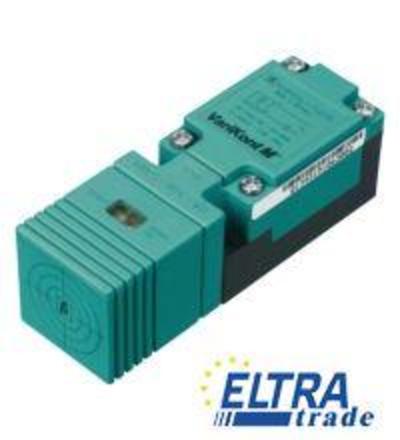

The Inductive sensor from Pepperl+Fuchs is designed for reliable non-contact detection of metallic objects. With a rated operating distance of 15 mm, it ensures precise sensing in various industrial applications.
The Inductive Proximity Sensors from Pepperl+Fuchs are engineered for high performance in automation and control applications. These sensors utilize electromagnetic fields to detect the presence of metallic objects without physical contact, making them an ideal choice for environments where wear and tear from mechanical components would be problematic.
Common applications for these sensors include assembly lines, material handling, and machine safety systems. Their robust PBT housing ensures durability, while the 4-wire output type facilitates easy integration into existing systems. With a focus on efficiency and reliability, these sensors are well-suited for a variety of industrial environments, providing consistent performance even in challenging conditions.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 15 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 12.15 mm | |
| Reduction factor rAl | 0.39 | |
| Reduction factor rCu | 0.36 | |
| Reduction factor r304 | 0.73 | |
| Nominal ratings | ||
| Operating voltage | 10 … 60 V DC | |
| Switching frequency | 0 … 200 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | yes | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2.5 V | |
| Operating current | 0 … 200 mA | |
| No-load supply current | less than or equal to 14.5 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 932 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | max. 2.5 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
