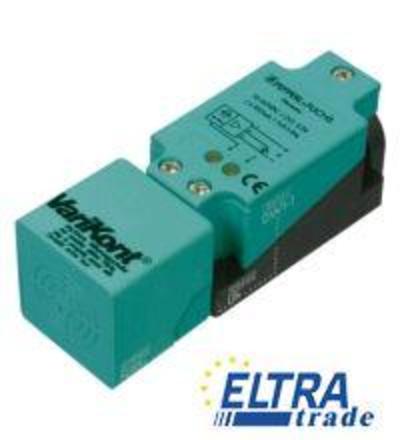

The Inductive rotation speed monitor is designed for precise rotation speed monitoring in various industrial applications. With a rated operating distance of 15 mm, this device ensures reliable detection in proximity sensing tasks.
The Inductive Proximity Sensors from Pepperl+Fuchs are essential components for non-contact detection in automation and control systems. These sensors utilize inductive technology, enabling them to detect metallic objects without physical contact, thus enhancing durability and reliability in demanding environments.
Common applications for these sensors include automation machinery, conveyor systems, and production lines where accurate monitoring of rotational speed is crucial. The sensors are designed for flush installation and feature a robust PBT housing, ensuring longevity even in challenging conditions. With a 3-wire output and screw terminal connections, integration into existing systems is straightforward, making them a versatile choice for various industrial needs.
| General specifications | ||
| Switching element function | PNP NO contact | |
| Frequency range | 1 … 10 Hz , adjustable | |
| Rated operating distance | 15 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 12.15 mm | |
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.85 | |
| Nominal ratings | ||
| Operating voltage | 15 … 60 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | 0 … 100 mA | |
| No-load supply current | less than or equal to 25 mA | |
| Switching state indicator | LED 1: yellow | |
| Damping indicator | LED 2: yellow | |
| Functional safety related parameters | ||
| MTTFd | 820 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | up to 2.5 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
