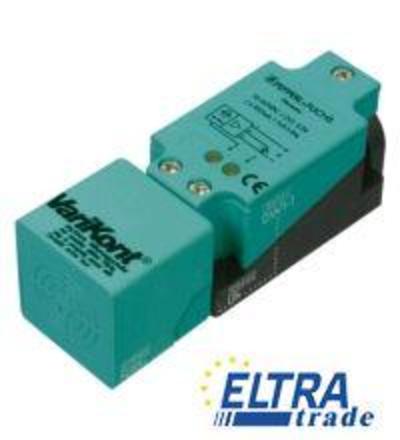

The Inductive rotation speed monitor is an essential device in automation and control systems, designed for non-contact detection of metallic objects. It operates at a rated distance of 15 mm, providing reliable performance in various industrial applications.
The Inductive Proximity Sensors from Pepperl+Fuchs are designed to detect the presence of metallic objects without physical contact, making them ideal for applications where wear and tear on traditional mechanical switches would be problematic. These sensors operate on the principle of electromagnetic induction, offering a robust solution for monitoring rotation speeds in machinery.
Common applications include use in conveyor systems, robotics, and automated assembly lines, where accurate speed measurement is critical for efficiency and safety. The sensors are particularly suited for flush mounting, providing versatility in installation, while the 3-wire output configuration ensures compatibility with a wide range of control systems.
Constructed from durable PBT housing material, these sensors can withstand harsh industrial environments. The DC voltage operation allows for easy integration into existing systems, making them a reliable choice for modern industrial automation needs.
| General specifications | ||
| Switching element function | PNP NO contact | |
| Frequency range | 10 … 100 Hz , adjustable | |
| Rated operating distance | 15 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 12.15 mm | |
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.85 | |
| Nominal ratings | ||
| Operating voltage | 15 … 60 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | 0 … 100 mA | |
| No-load supply current | less than or equal to 25 mA | |
| Switching state indicator | LED 1: yellow | |
| Damping indicator | LED 2: yellow | |
| Functional safety related parameters | ||
| MTTFd | 820 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | up to 2.5 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
