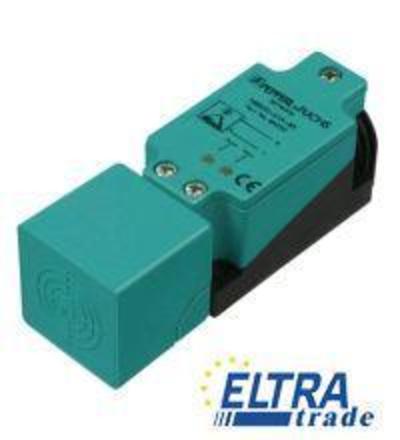

The Inductive sensor from Pepperl+Fuchs is a reliable solution for non-contact detection of metallic objects. With a rated operating distance of 15 mm, it is suitable for various industrial applications where precise sensing is required.
The inductive proximity sensors from Pepperl+Fuchs are designed for robust and reliable performance in a variety of industrial environments. These sensors operate on the principle of electromagnetic induction, allowing them to detect the presence of metallic objects without direct contact. This feature makes them ideal for applications where wear and tear from mechanical contact is a concern.
Common applications of these sensors include automation systems, conveyor belts, and material handling equipment. They are particularly effective in detecting position, speed, and presence of objects in harsh industrial settings. The sensors are embeddable and come with a terminal compartment for easy installation, ensuring seamless integration into existing systems.
With an AC Make/Break switching element function and a 2-wire output type, these sensors provide versatility and ease of use in various configurations. The housing material made from PBT ensures durability, making these sensors suitable for long-term operation in demanding conditions.
| General specifications | ||
| Switching element function | AC |
|
| Rated operating distance | 15 mm | |
| Installation | flush | |
| Output polarity | AC | |
| Assured operating distance | 0 … 12.15 mm | |
| Reduction factor rAl | 0.3 | |
| Reduction factor rCu | 0.25 | |
| Reduction factor r304 | 0.75 | |
| Nominal ratings | ||
| Operating voltage | 20 … 253 V 1) | |
| Switching frequency | 0 … 20 Hz | |
| Hysteresis | 1 … 10 typ. 5 % | |
| Voltage drop | less than or equal to 5 V | |
| Momentary current (20 ms, 0.1 Hz) |
0 … 3000 mA | |
| Operating current | 8 … 500 mA | |
| Off-state current | 0.5 … 1.95 mA typ. 1.2 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Approvals and certificates | ||
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Storage temperature | -25 … 85 �C (-13 … 185 �F) | |
| Mechanical specifications | ||
| Core cross-section | up to 2.5 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP68 | |
| Note | 1) In the temperature range below 0 �C, permissible operating voltage Ub 80…253 V Safety fuse less than or equal to 2 A (quick-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly. |
|
