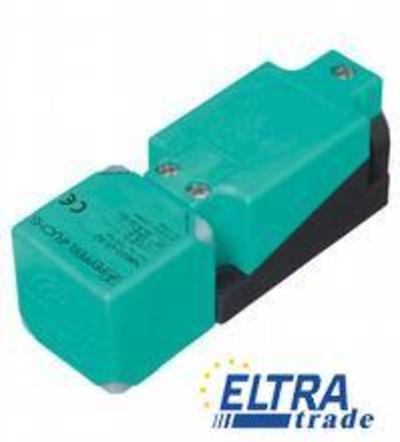

The Inductive sensor from Pepperl+Fuchs is designed for reliable detection of metallic objects without physical contact. With a rated operating distance of 40 mm, it provides precise sensing capabilities in various industrial applications.
Inductive proximity sensors are essential components in automation and control systems, widely used for detecting metallic objects in a non-contact manner. The sensors utilize electromagnetic fields to detect the presence of metal, making them suitable for applications in manufacturing, packaging, and material handling. Their robustness and reliability ensure consistent performance in challenging environments.
The sensors are constructed with a durable PBT housing, ensuring resistance to mechanical stress and environmental factors. The installation type is non-flush, allowing for easy integration into existing setups. With a 4-wire output type and screw terminal connection, these sensors offer straightforward wiring and compatibility with various control systems. They operate on DC voltage, making them versatile for different applications.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 40 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 32.4 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.45 | |
| Reduction factor r304 | 0.8 | |
| Nominal ratings | ||
| Operating voltage | 10 … 60 V | |
| Switching frequency | 0 … 100 Hz | |
| Hysteresis | 1 … 10 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2.8 V | |
| Operating current | 0 … 200 mA | |
| No-load supply current | less than or equal to 10 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 530 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | up to 2.5 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP68 | |
