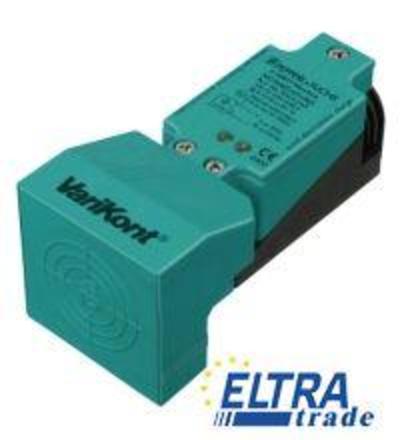

The inductive sensor series from Pepperl+Fuchs is designed for reliable non-contact detection of metallic objects. With a rated operating distance of 40 mm, these sensors are suitable for various industrial applications where precise sensing is essential.
Inductive proximity sensors are essential components in automation and control systems, utilized for their ability to detect metallic objects without physical contact. This specific series is engineered using PBT housing material, ensuring durability and resilience in demanding environments. These sensors operate on a DC voltage and feature a 3-wire output type, making them compatible with a wide range of control systems.
Common applications for inductive sensors include position sensing, object detection, and counting tasks in manufacturing and assembly lines. Their non-flush installation design allows for effective installation in various configurations, ensuring optimal performance in different settings. By providing reliable feedback on the presence of metallic objects, these sensors enhance operational efficiency and safety in industrial processes.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 40 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 32.4 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.45 | |
| Reduction factor r304 | 0.8 | |
| Nominal ratings | ||
| Operating voltage | 10 … 60 V | |
| Switching frequency | 0 … 100 Hz | |
| Hysteresis | 1 … 10 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2.8 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.01 mA | |
| No-load supply current | less than or equal to 10 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 580 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Storage temperature | -25 … 85 �C (-13 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | up to 2.5 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP68 | |
