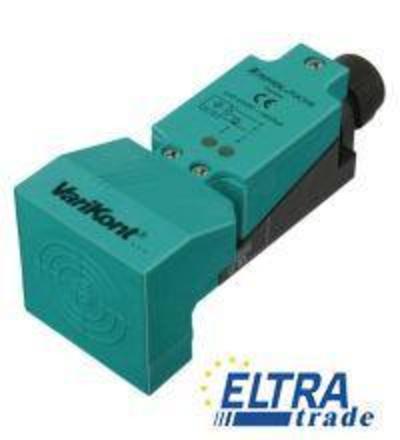

The Inductive sensor from Pepperl+Fuchs is designed for reliable detection of metallic objects without direct contact. With a rated operating distance of 40 mm and a robust PBT housing, it ensures durability in various industrial environments.
Inductive proximity sensors are widely used in automation and control systems for non-contact detection of metallic objects. This product family features sensors that operate on the principle of electromagnetic induction, allowing them to detect the presence of metal targets effectively. These sensors are particularly valuable in applications where direct contact is not feasible, such as in moving machinery or delicate components.
Constructed from high-quality PBT housing, these sensors are designed to withstand harsh conditions, making them suitable for various environments including manufacturing, packaging, and assembly lines. The 3-wire output configuration simplifies integration into existing systems, while the screw terminal connection type ensures a secure and stable electrical connection. With a rated operating distance of 40 mm, this series of inductive sensors provides reliable and precise detection capabilities for a range of industrial applications.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 40 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 32.4 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.45 | |
| Reduction factor r304 | 0.8 | |
| Nominal ratings | ||
| Operating voltage | 10 … 60 V | |
| Switching frequency | 0 … 100 Hz | |
| Hysteresis | 1 … 10 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2.8 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.01 mA | |
| No-load supply current | less than or equal to 10 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Storage temperature | -25 … 85 �C (-13 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | up to 2.5 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP68 | |
