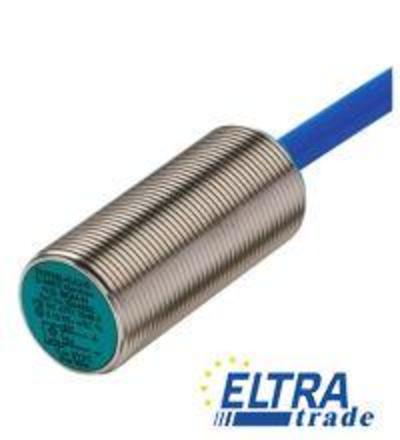

The inductive sensor is a cylindrical-type proximity sensor designed for non-contact detection of metallic objects. With a housing diameter of 18 mm and constructed from durable stainless steel, this sensor is ideal for various industrial applications.
Inductive proximity sensors are essential components in automation and control systems, providing reliable non-contact detection of metallic objects. These sensors operate on the principle of electromagnetic induction, generating an oscillating electromagnetic field around the sensing area. When a metallic object enters this field, it causes a change in the field’s amplitude, triggering the sensor’s output signal. This makes inductive sensors particularly suitable for applications where physical contact with the object is not feasible or desirable.
Common applications for inductive proximity sensors include position sensing, object detection, and counting in manufacturing and assembly lines. Their robust design and resistance to environmental factors such as dust and moisture make them suitable for harsh industrial environments. Furthermore, their flush installation capability allows for seamless integration into machinery and equipment, enabling precise detection without mechanical interference.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 5 mm | |
| Installation | flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 4.05 mm | |
| Reduction factor rAl | 0.21 | |
| Reduction factor rCu | 0.18 | |
| Reduction factor r304 | 0.63 | |
| Nominal ratings | ||
| Nominal voltage | 8 V | |
| Operating voltage | 5 … 25 V | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | 3 % | |
| Current consumption | ||
| Measuring plate not detected | min. 3 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 °C (-13 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 5 m | |
| Core cross-section | 0.75 mm2 | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G- 1D | |
