Out of stock

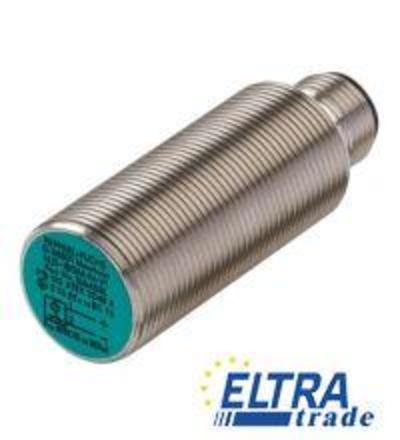

This inductive sensor features a cylindrical design with a housing diameter of 18 mm and is constructed from durable stainless steel 1.4305 / AISI 303. With a rated operating distance of 5 mm, it is designed for flush installation and operates on a 2-wire DC output.
Inductive proximity sensors from Pepperl+Fuchs are designed for non-contact detection of metallic objects. Utilizing electromagnetic fields, these sensors can reliably detect the presence of ferrous and non-ferrous metals without physical contact, making them ideal for various industrial applications.
These sensors are commonly used in automation systems, conveyor belts, and manufacturing processes where precise object detection is critical. The flush installation capability allows for seamless integration into machinery, enhancing both space efficiency and operational reliability. The robust stainless steel housing ensures durability in harsh environments, while the M12 connector facilitates easy installation and connection in diverse setups.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 5 mm | |
| Installation | flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 4.05 mm | |
| Reduction factor rAl | 0.21 | |
| Reduction factor rCu | 0.18 | |
| Reduction factor r304 | 0.63 | |
| Nominal ratings | ||
| Nominal voltage | 8.2 V (Ri approx. 1 kOm) | |
| Operating voltage | 5 … 25 V | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | 3 % | |
| Current consumption | ||
| Measuring plate not detected | min. 3 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 °C (-13 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G | |
