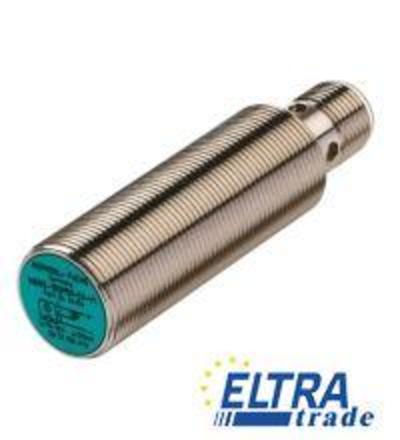

The inductive sensor is a cylindrical type sensor designed for reliable detection of metallic objects. With a housing diameter of 18 mm and constructed from durable stainless steel 1.4305 / AISI 303, it is suitable for various industrial environments.
Inductive proximity sensors are widely utilized in automation and control applications, primarily for detecting metallic objects without physical contact. These sensors operate based on the principle of electromagnetic induction, providing a high level of reliability and precision in various operational environments.
Common applications include position sensing, object counting, and end-of-travel detection in machinery. The flush installation capability allows for seamless integration into equipment, while the robust stainless steel housing ensures durability in harsh conditions. With a rated operating distance of 5 mm and a 4-wire output configuration, these sensors are versatile and can easily connect to existing control systems.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 5 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 4.05 mm | |
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.35 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 10 … 60 V | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 400 mA | |
| Off-state current | 0 … 0.5 mA | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1000 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Storage temperature | -40 … 85 �C (-40 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
