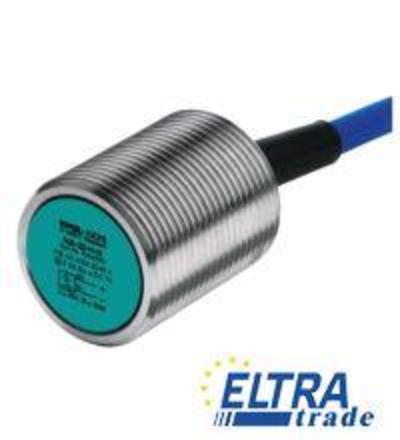

The inductive sensor series features a cylindrical design with a 28.3 mm housing diameter. Constructed from durable stainless steel 1.4305 / AISI 303, these sensors are designed for flush installation with a rated operating distance of 6 mm, making them suitable for a variety of industrial applications.
Inductive proximity sensors are essential components in automation and control systems, used primarily for detecting the presence of metallic objects without direct contact. Their non-contact operation enhances durability and reliability, reducing wear and tear, making them ideal for demanding environments. These sensors operate based on the principle of electromagnetic induction, where the presence of a metal object affects the oscillation of the sensor’s electromagnetic field.
Common applications include position detection, object counting, and controlling production processes across various industries such as manufacturing, packaging, and logistics. The robust stainless steel housing provides protection against environmental factors, enabling the sensors to function effectively in harsh conditions. With a rated operating distance of up to 6 mm and a flush installation design, they can be integrated seamlessly into machinery and equipment, ensuring optimal performance in automated systems.
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 6 mm | |
| Installation | flush | |
| Output polarity | Safety Function | |
| Assured operating distance | 0 … 4.86 mm | |
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.85 | |
| Safety Integrity Level (SIL) | up to SIL3 acc. to IEC 61508 Danger! In safety-related applications the sensor must be operated with a qualified fail safe interface from Pepperl+Fuchs, such as KFD2-SH-EX1. Consider the exida Functional Safety Assessment document which is available on www.PEPPERL+FUCHS.com as an integral part of this product’s documentation. |
|
| Nominal ratings | ||
| Nominal voltage | 8 V DC | |
| Operating voltage | 5 … 25 V | |
| Switching frequency | 0 … 2000 Hz | |
| Suitable for 2:1 technology | yes , with reverse polarity protection diode | |
| Current consumption | ||
| Measuring plate not detected | greater or equal 3 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Functional safety related parameters | ||
| MTTFd | 9191 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -40 … 100 °C (-40 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | cable silicone , 2 m | |
| Core cross-section | 0.75 mm2 | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 28.3 mm (PG21) | |
| Degree of protection | IP68 | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G- 1D | |
