Out of stock

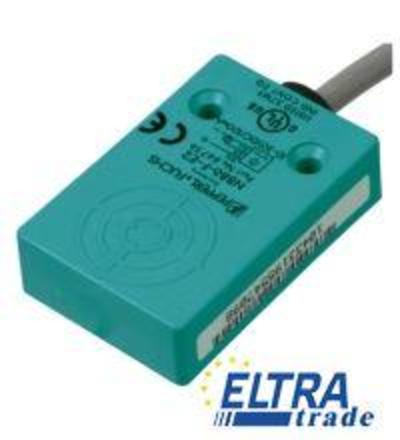

The inductive sensor is a reliable solution designed for non-contact detection of metallic objects within a specified sensing range. With a rated operating distance of 6 mm, this sensor is suitable for various industrial applications.
Inductive proximity sensors are essential components in automation and control systems, offering precise detection capabilities without the need for physical contact. These sensors operate by generating an electromagnetic field, which detects the presence of metal objects within its range. The robust design of these sensors allows them to function effectively in harsh industrial environments.
Common applications include position sensing, object counting, and end-of-travel detection in machinery. Utilizing a 3-wire output configuration, these sensors can be easily integrated into existing systems. The flush installation feature enhances their versatility, allowing for seamless integration into various equipment designs.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 6 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 4.8 mm | |
| Reduction factor rAl | 0.22 | |
| Reduction factor rCu | 0.2 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 10 … 60 V DC | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | 0 … 0.3 typ. 0.1 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | less than or equal to 0.5 mA | |
| No-load supply current | less than or equal to 20 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 990 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | cable PUR , 2 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
