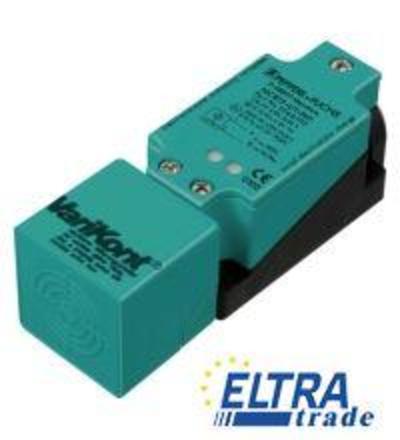

The Inductive sensor from Pepperl+Fuchs is a reliable solution for non-contact detection of metallic objects. With a rated operating distance of 6 mm, this sensor is ideal for applications requiring precise sensing in automated systems.
Pepperl+Fuchs’ Inductive Proximity Sensors are designed for robust and reliable detection of metallic objects in various industrial applications. These sensors operate on the principle of electromagnetic induction, allowing them to detect the presence of ferrous and non-ferrous metals without direct contact. This technology is essential in environments where mechanical wear and tear must be minimized, enhancing the longevity and reliability of the sensing solution.
Common applications for inductive proximity sensors include position detection, object counting, and automation control in manufacturing processes. Their ability to function in harsh conditions makes them suitable for use in packaging, assembly lines, and material handling systems. The sensors are typically housed in durable PBT material, ensuring protection against environmental factors while maintaining functional integrity.
These sensors feature a 2-wire output type and screw terminal connection, facilitating straightforward installation and integration into existing systems. With flush installation capabilities, they can be embedded into machinery for optimized space utilization and safety.
| General specifications | ||
| Switching element function | NAMUR, NO | |
| Rated operating distance | 6 mm | |
| Installation | flush | |
| Output polarity | Safety Function | |
| Assured operating distance | 0 … 4.86 mm | |
| Reduction factor rAl | 1 | |
| Reduction factor rCu | 1 | |
| Reduction factor r304 | 0 | |
| Nominal ratings | ||
| Nominal voltage | 8.2 V (Ri approx. 1 kOm) | |
| Switching frequency | 0 … 100 Hz | |
| Current consumption | ||
| Measuring plate not detected | less than or equal to 1 mA | |
| Measuring plate detected | greater or equal 3 mA | |
| Functional safety related parameters | ||
| MTTFd | 9190 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 �C (-13 … 212 �F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | up to 2.5 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Degree of protection | IP68 | |
| Note | only for non-ferrous metal | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G- 1D | |
