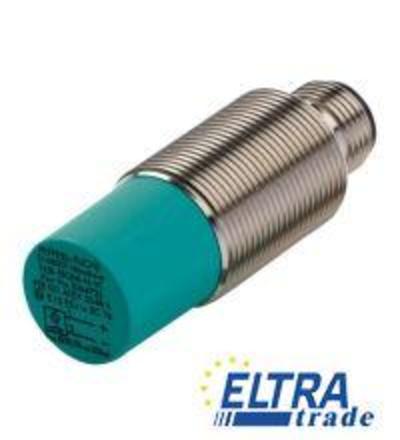

The inductive sensors from Pepperl+Fuchs are robust and reliable devices designed for non-contact detection of metallic objects. With a cylindrical housing diameter of 18 mm and a rated operating distance of 8 mm, these sensors are suitable for a wide range of industrial applications.
Pepperl+Fuchs inductive proximity sensors are widely used in automation and industrial applications due to their precision and durability. These sensors operate on the principle of electromagnetic induction, allowing them to detect the presence of metallic objects without physical contact. This characteristic makes them ideal for environments where mechanical wear or contamination is a concern.
The sensors are housed in a stainless steel casing, providing excellent resistance to corrosion and harsh environmental conditions. Their compact cylindrical design allows for versatile installation options, while the M12 x 1 connector simplifies electrical connections. These inductive sensors are particularly effective in applications such as assembly lines, packaging machinery, and material handling systems, where reliable object detection is critical for operational efficiency.
- Housing Material: Stainless steel 1.4305 / AISI 303
- Connection Type: Connector M12 x 1, 4-pin
- Output Type: 2-wire DC
| General specifications | ||
| Switching element function | NAMUR, NC | |
| Rated operating distance | 8 mm | |
| Installation | non-flush | |
| Output polarity | NAMUR | |
| Assured operating distance | 0 … 6.48 mm | |
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.85 | |
| Nominal ratings | ||
| Nominal voltage | 8.2 V (Ri approx. 1 kOm) | |
| Operating voltage | 5 … 25 V | |
| Switching frequency | 0 … 200 Hz | |
| Hysteresis | 3 % | |
| Current consumption | ||
| Measuring plate not detected | min. 3 mA | |
| Measuring plate detected | less than or equal to 1 mA | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Approvals and certificates | ||
| FM approval | ||
| Control drawing | 116-0165F | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 �C (-13 … 212 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
| General information | ||
| Use in the hazardous area | see instruction manuals | |
| Category | 1G- 2G | |
