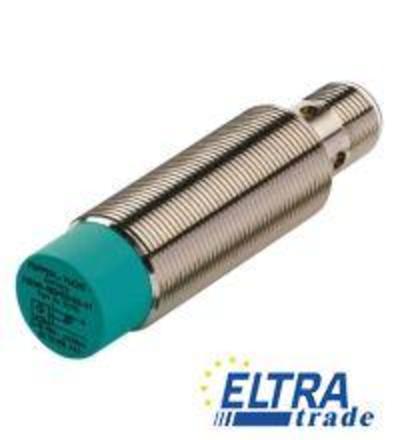

The inductive sensors from Pepperl+Fuchs are designed for detecting metallic objects without physical contact. These cylindrical sensors, constructed from durable stainless steel, offer a reliable operating distance suitable for various industrial applications.
Inductive proximity sensors are essential components in automation and control systems, widely used for object detection in industrial environments. These sensors operate on the principle of electromagnetic induction, allowing them to detect the presence of metallic objects without any physical contact. Their robust design and high resistance to environmental factors make them ideal for use in harsh conditions.
Common applications for these sensors include position detection, end-of-stroke monitoring, and counting systems in manufacturing and assembly processes. The cylindrical housing, typically with a diameter of 18 mm, ensures easy integration into machinery and equipment. With features such as a stainless steel housing for enhanced durability and a non-flush installation type, these sensors are well-suited for a variety of tasks, providing reliable performance and longevity in demanding applications.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 8 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 6.48 mm | |
| Reduction factor rAl | 0.42 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.72 | |
| Nominal ratings | ||
| Installation conditions | ||
| A | 10 mm | |
| B | 54 mm | |
| C | 24 mm | |
| Operating voltage | 10 … 60 V | |
| Switching frequency | 0 … 1000 Hz | |
| Hysteresis | 1 … 15 typ. 7.5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Lowest operating current | 0 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.01 mA | |
| No-load supply current | less than or equal to 9 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1010 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
