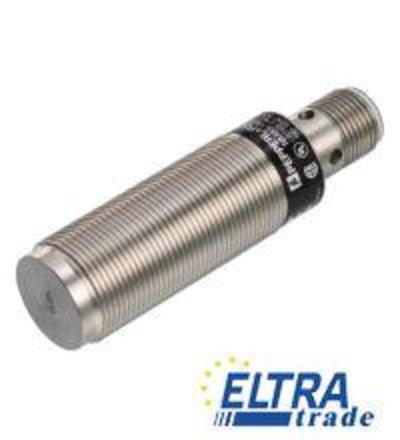

The inductive sensor series from Pepperl+Fuchs features a cylindrical design with a robust stainless steel housing, providing reliable performance in demanding environments. With a rated operating distance of 10 mm, these sensors are ideal for non-contact detection of metallic objects.
Pepperl+Fuchs inductive proximity sensors are designed for reliable, non-contact detection of metallic objects in various industrial applications. These sensors utilize electromagnetic fields to sense the presence of metal targets, making them ideal for use in environments where traditional mechanical switches may fail due to wear or contamination.
Common applications include automated assembly lines, material handling systems, and safety equipment where precise and dependable sensing is essential. The robust cylindrical housing, typically made from stainless steel, ensures durability and resistance to harsh conditions, while the standard M12 connector facilitates easy integration into existing systems. With a flush installation capability, these sensors are well-suited for confined spaces and can be mounted in a variety of configurations.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 10 mm | |
| Installation | flush (Requirements: see drawing below) | |
| Output polarity | DC | |
| Assured operating distance | 0 … 8.1 mm | |
| Actuating element | Ferrous and nonferrous targets | |
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.25 | |
| Reduction factor r304 | 0.85 | |
| Reduction factor rSt37 | 1 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 240 Hz | |
| Hysteresis | 3 … 15 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | less than or equal to 200 mA | |
| Off-state current | less than or equal to 10 µA | |
| No-load supply current | less than or equal to 10 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 |
|
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated ‰¤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | Stainless steel 1.4305 / AISI 303 | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 / IP68 / IP69K – cordset dependent according to cable specification | |
