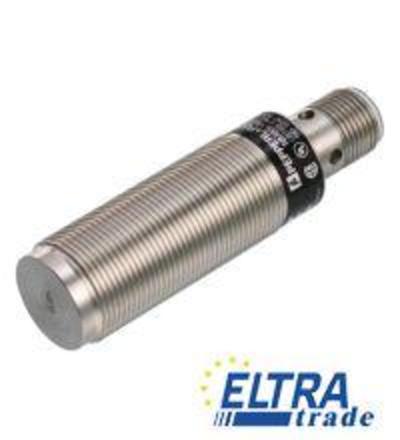

The inductive sensor from Pepperl+Fuchs is designed for reliable non-contact detection of metallic objects. With a cylindrical housing diameter of 18 mm and a rated operating distance of 5 mm, this sensor is ideal for a variety of industrial applications.
Inductive proximity sensors are essential components in automation and control systems, providing precise detection of metallic objects without direct contact. These sensors operate based on the principle of electromagnetic induction, allowing them to sense the presence of metallic objects within a specified range. The cylindrical design and stainless steel housing ensure durability and resistance to harsh environmental conditions, making them suitable for use in various industrial settings.
Common applications for inductive sensors include automated assembly lines, conveyor systems, and packaging machinery, where they facilitate the detection of parts and products. Their flush installation capability allows for seamless integration into machinery, minimizing the risk of mechanical damage. Furthermore, the 3-wire output type ensures compatibility with a wide range of control systems, enhancing their versatility in industrial applications.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 5 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 4.05 mm | |
| Actuating element | Ferrous targets | |
| Reduction factor rAl | 0 | |
| Reduction factor rCu | 0 | |
| Reduction factor r304 | 0.8 | |
| Reduction factor rSt37 | 1 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 15 Hz | |
| Hysteresis | 3 … 15 typ. 5 % | |
| Reverse polarity protection | yes | |
| Short-circuit protection | yes | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | less than or equal to 200 mA | |
| Current consumption | < 14 mA | |
| Off-state current | less than or equal to 10 mA | |
| Functional safety related parameters | ||
| MTTFd | 990 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | 4-way dual LED |
|
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -40 … 70 °C (-40 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | Stainless steel 1.4305 / AISI 303 | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 / IP68 / IP69K – cordset dependent according to cable specification | |
