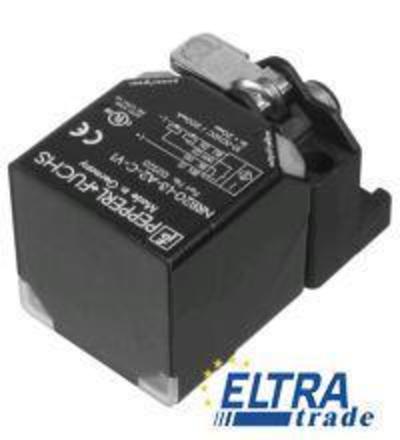

This inductive sensor from the VariKont L ® series is designed for reliable detection of metallic objects. It features a rated operating distance of 20 mm and is ideal for various industrial automation applications.
The inductive sensors from the VariKont L ® series are engineered for non-contact sensing of metallic targets, making them essential components in numerous automation and control applications. These sensors leverage the principle of electromagnetic induction to detect the presence of metallic objects without physical contact, ensuring durability and longevity in demanding environments.
Common applications for inductive proximity sensors include position sensing, object counting, and end-of-travel detection in machinery. They are particularly valuable in manufacturing and assembly lines, where precision and reliability are crucial. The sensors can be installed flush into machinery or surfaces, allowing for seamless integration into automation systems while maintaining a compact footprint.
Constructed with a housing made from GD-ZnAl4Cu1 and featuring a coated mounting flange, these sensors offer enhanced protection against environmental factors. The 4-wire output configuration and M12 x 1 connector type facilitate easy installation and connectivity, making these sensors a versatile choice for various industrial applications.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 20 mm | |
| Installation | flush | |
| Output polarity | switched high | |
| Assured operating distance | 0 … 16.2 mm | |
| Reduction factor rAl | 1 | |
| Reduction factor rCu | 1 | |
| Reduction factor r304 | 1 | |
| Reduction factor rSt37 | 1 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 100 Hz | |
| Hysteresis | 3 … 15 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2.5 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.01 mA | |
| No-load supply current | less than or equal to 25 mA | |
| Constant magnetic field | 200 mT | |
| Alternating magnetic field | 200 mT | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 880 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| Protection class | II | |
| Rated insulation voltage | 60 V | |
| Design-impulse-voltage withstand | 800 V | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | GD-ZnAl4Cu1, coated mounting flange PA6-GF35 |
|
| Sensing face | PA 6 Grivory GVN-35H | |
| Degree of protection | IP67 | |
| Mass | 180 g | |
