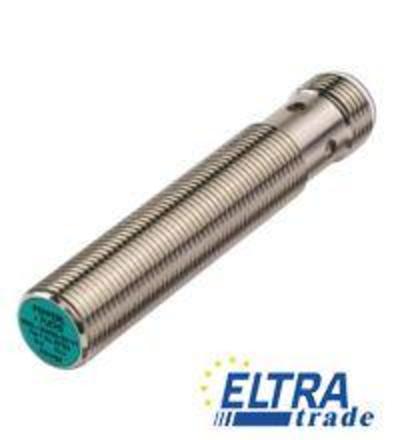

The inductive sensors from Pepperl+Fuchs are designed for non-contact detection of metallic objects, ensuring reliable performance in various industrial applications. With a cylindrical housing measuring 12 mm in diameter and crafted from durable stainless steel, these sensors are well-suited for challenging environments.
Inductive proximity sensors are essential components in automation technology, widely used for detecting the presence of metallic objects without physical contact. These sensors operate based on the principle of electromagnetic induction, making them ideal for applications where contact-based sensing is impractical or undesirable.
Commonly utilized in manufacturing, assembly lines, and packaging machinery, inductive sensors can be embedded in machinery or installed flush to save space while providing accurate detection. The sensors are particularly effective in environments with dust, dirt, and moisture, as their robust stainless steel housing ensures longevity and reliability. They are available with various connection types and output configurations, allowing for seamless integration into existing systems, enhancing operational efficiency and safety.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 4 mm | |
| Installation | flush | |
| Output polarity | switched high | |
| Assured operating distance | 0 … 3.24 mm | |
| Reduction factor rAl | 1 | |
| Reduction factor rCu | 1 | |
| Reduction factor r304 | 1 | |
| Reduction factor rSt37 | 1 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 2000 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Rated insulation voltage | 60 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 13 mA | |
| Constant magnetic field | 200 mT | |
| Alternating magnetic field | 200 mT | |
| Switching state indicator | Multihole-LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1477 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| Protection class | II | |
| Rated insulation voltage | 60 V | |
| Design-impulse-voltage withstand | 800 V | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Storage temperature | -40 … 85 �C (-40 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | Crastin (PBTB) | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
| Mass | 23 g | |
| General information | ||
| Scope of delivery | 2 self locking nuts in scope of delivery | |
