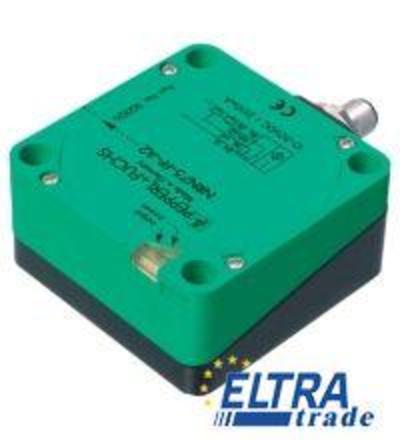

The inductive sensor is designed for precise detection of metallic objects without physical contact. Its robust construction and reliable performance make it suitable for a wide range of industrial applications.
Inductive proximity sensors are essential components in automation technology, used to detect the presence of metallic objects in various environments. These sensors utilize electromagnetic fields to sense the proximity of metal, providing reliable detection without direct contact. Their non-flush installation ensures that they can be easily integrated into machinery and equipment, enhancing operational efficiency.
Common applications for inductive sensors include assembly line automation, packaging machinery, and material handling systems. They are particularly valuable in environments where contact-based detection could lead to wear or damage. The sensors are housed in a durable PBT/metal casing, ensuring longevity and resilience against harsh industrial conditions.
With a rated operating distance of 75 mm and a 4-wire output configuration, these sensors facilitate straightforward integration into existing systems. Their compatibility with DC voltage further enhances their versatility, making them suitable for a variety of applications in modern industrial setups.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 75 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 55 mm | |
| Reduction factor rAl | 1 | |
| Reduction factor rCu | 1 | |
| Reduction factor r304 | 1 | |
| Reduction factor rSt37 | 1 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 50 Hz | |
| Hysteresis | typ. 3 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Rated insulation voltage | 50 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA | |
| No-load supply current | less than or equal to 20 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 824 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| Protection class | II | |
| Rated insulation voltage | 60 V | |
| Design-impulse-voltage withstand | 800 V | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | 0 … 50 °C (32 … 122 °F) (± 10 % changing operating distance) -25 … 70 °C (-13 … 158 °F) (± 20 % changing operating distance) |
|
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | PBT/metal | |
| Sensing face | PBT | |
| Degree of protection | IP68 | |
